Lantek Expert Duct

Lantek Expert Duct is a powerful software for calculating HVAC and DUCT figures. This software system perfectly combines machine technology with the customer’s programming and management needs.

Lantek Expert Duct is designed in such a way that the user only has to follow the simple steps prompted by the system. Lantek Expert Duct includes a complete library of parametric figures, which also follow DIN and SMACNA regulations (square to round, cones, cylinders, boiler making figures, tube intersections, etc.), and covers most of the duct shapes available.

Request a DEMO What’s new?

REDUCE
SCRAP

ELIMINATE
REWORK

Technical Characteristics

Extended library of parametric parts and HVAC figures.
2D design. Lantek Expert Duct integrates a 2D CAD module to design any part, as well as any geometric modification of the contours. The flat pattern can then be cut or punched in Lantek Expert which considers flanges, notches, and bend lines for marking.
Warehouses management. All parts are stored in organized databases that are easily accessible.
Intelligent import/export. This software connects to the principal CAD systems on the market: DXF, SWG, IGES, and more.
Integration of all options. Lantek Expert Duct is fully integrated in a single program with the other modules of the Lantek Expert family.

Figure library

Configurability

Lantek Expert Duct is a system which takes into account duct requirements.

The user can define the following options:

Type of neutral axis (internal, external) with which to make calculations
Type of joints used for the parts
Number of sections
Type of engraving (lines, notches, drilling, etc.) for cutting machines
Seams and connections
Insulators

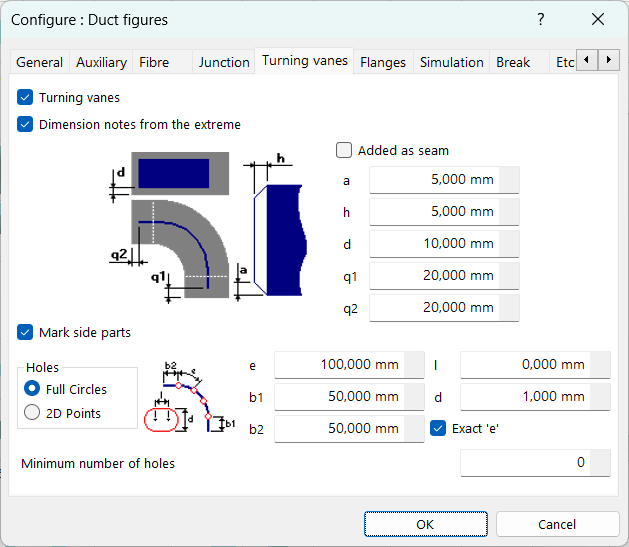

Configure turning vanes

High definition HVAC and duct figures

Lantek Expert Duct adapts perfectly to the air conditioning and ventilation industry.

The user can define the following options in this regard.

Baffle plates. These can be made by configuring the necessary parameters in order to generate the sheets or plates.
Library of seams, connections, flanges, etc. The user can easily define these elements graphically.

Seams

Listings

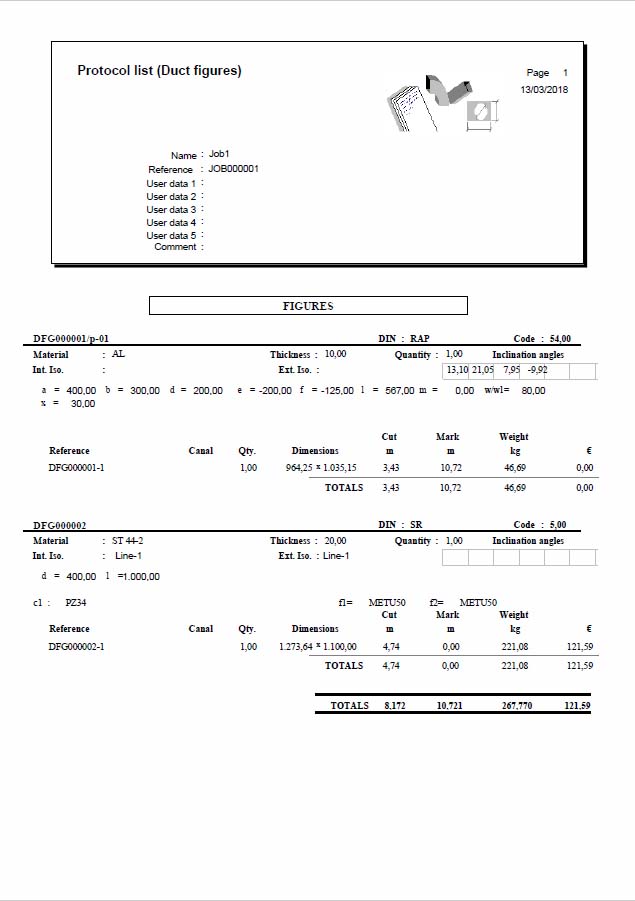

Lantek Expert Duct generates listings such as:

Listing scale 1:1 – in order to cut the part directly from the sheet
Geometrical listing – for the development of essential points
Design of important shapes, page by page
Listing of all parts
Listing of tags
Listing of macros, insulators, etc.

Listings

DIN regulation

The figures are using DIN standard 18.379 and SMACNA. Lantek guarantees the fulfillment of the European building and construction regulations. Lantek also generates documentation and information in line with these regulations.

DIN regulation

Do you want to test the benefits of this tool?

Please request a demonstration with one of our agents by filling the form in the right.
